Stamping Git SHAs into Your Binaries

Have you ever looked at a binary from a project you wrote and asked, "Where the hell are the sources for this?" Well, I'm about to make your life (and the lives of your customers) a bit easier. I'm going to show you how to write the Git SHA1 for each commit directly into the resulting binaries.

If your build is anything like Roslyn you may have a half dozen different branches, each with their own little modifications, each of which get built occasionally for testing or prerelease validation. Often I'll find Roslyn binaries randomly floating in a share somewhere or attached to a bug report with little to no context. While we do have carefully incremented version numbers in our builds, it can be a challenge to even reverse engineer a version into a specific source code commit. If each branch doesn't have its own versioning scheme it's possible that two branches could produce binaries with the exact same version, even if they came from completely different source code. Solution: write the commit SHA directly into the binary. Then you'll always know exactly what code was used to build the binary. This guide will be targeted at people building .NET applications, but I'll give general advice where applicable and you can choose what makes sense for your build.

The first question is, where in the binary do we write the SHA? My answer is: wherever it's easiest to see. For console programs, that may mean including the SHA in the output from a --version flag. For most programs, I think the file metadata, as displayed by a common file system browser on your preferred OS, is the most accessible tag. Specifically, for .NET programs I like using the AssemblyInformationalVersionAttribute. This tag

  1. Is only specified as a block of text, making it perfect for human-readable unstructured data.
  2. Is viewable by default in the Windows File Explorer both in the file listing view and in the properties window.
  3. Is easily accessible by .NET code via reflection.

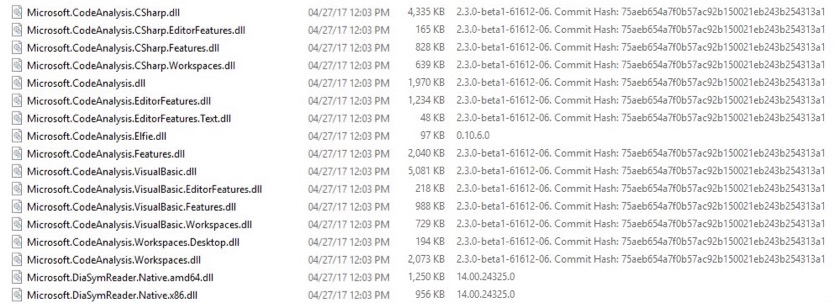

Here's what it looks like in File Explorer with details expanded:

File explorer screenshot

For Unix-like systems I would probably try to use extended file attributes, although an exact analog is hard to come by because this is not exactly standardized across POSIX systems.

Once you've figured out where to put the SHA, you need to retrieve the SHA in the first place. Now I know what you're thinking: "well that's easy, I'll just shell out to git and run a quick git rev-parse HEAD...". Nuh-uh. Let's assume that Git is installed on the machine—what makes you think it's available on the path? As I found out quite quickly when I implemented this for Roslyn, there are a lot of instances where someone may be building your code (like in a build lab) that checks out the Git repository, but doesn't build with Git on the path. Instead, I found that the most robust method is to either pass the SHA through an environment variable generated by the build environment, or to grab the SHA directly out of the Git object directory. Don't worry, I won't leave you flailing; here's the Roslyn MSBuild logic for finding and reading the Git SHA (sorry about the XML).

<When Condition="'$(BUILD_SOURCEVERSION)' != ''">
  <PropertyGroup>
    <GitHeadSha>$(BUILD_SOURCEVERSION)</GitHeadSha>
  </PropertyGroup>
</When>
<When Condition="'$(BUILD_SOURCEVERSION)' == '' AND '$(GIT_COMMIT)' != ''">
  <PropertyGroup>
    <GitHeadSha>$(GIT_COMMIT)</GitHeadSha>
  </PropertyGroup>
</When>
<Otherwise>
  <PropertyGroup>
    <GitHeadSha>Not found</GitHeadSha>
    <DotGitDir>$([System.IO.Path]::GetFullPath('$(MSBuildThisFileDirectory)../../.git'))</DotGitDir>
    <HeadFileContent Condition="Exists('$(DotGitDir)/HEAD')">$([System.IO.File]::ReadAllText('$(DotGitDir)/HEAD').Trim())</HeadFileContent>
    <RefPath Condition="$(HeadFileContent.StartsWith('ref: '))">$(DotGitDir)/$(HeadFileContent.Substring(5))</RefPath>
    <GitHeadSha Condition="'$(RefPath)' != '' AND Exists('$(RefPath)')">$([System.IO.File]::ReadAllText('$(RefPath)').Trim())</GitHeadSha>
    <GitHeadSha Condition="'$(HeadFileContent)' != '' AND '$(RefPath)' == ''">$(HeadFileContent)</GitHeadSha>
  </PropertyGroup>
</Otherwise>

It's a little verbose, but should be pretty straight-forward. We first try to read the SHA directly out of the refs file in .git/HEAD prefixed with the text ref:. Otherwise we assume a format called a "packed ref", on which I won't go into detail here. It's basically a pointer to another file, so we just read the new file and use the content from the second file. Afterwards, the GitHeadSha param is passed to <AssemblyInformationalVersionAttribue>, where it flows into the binary.

With that I'll leave you to try this yourself, and hopefully your days of playing source-code-detective are over.
